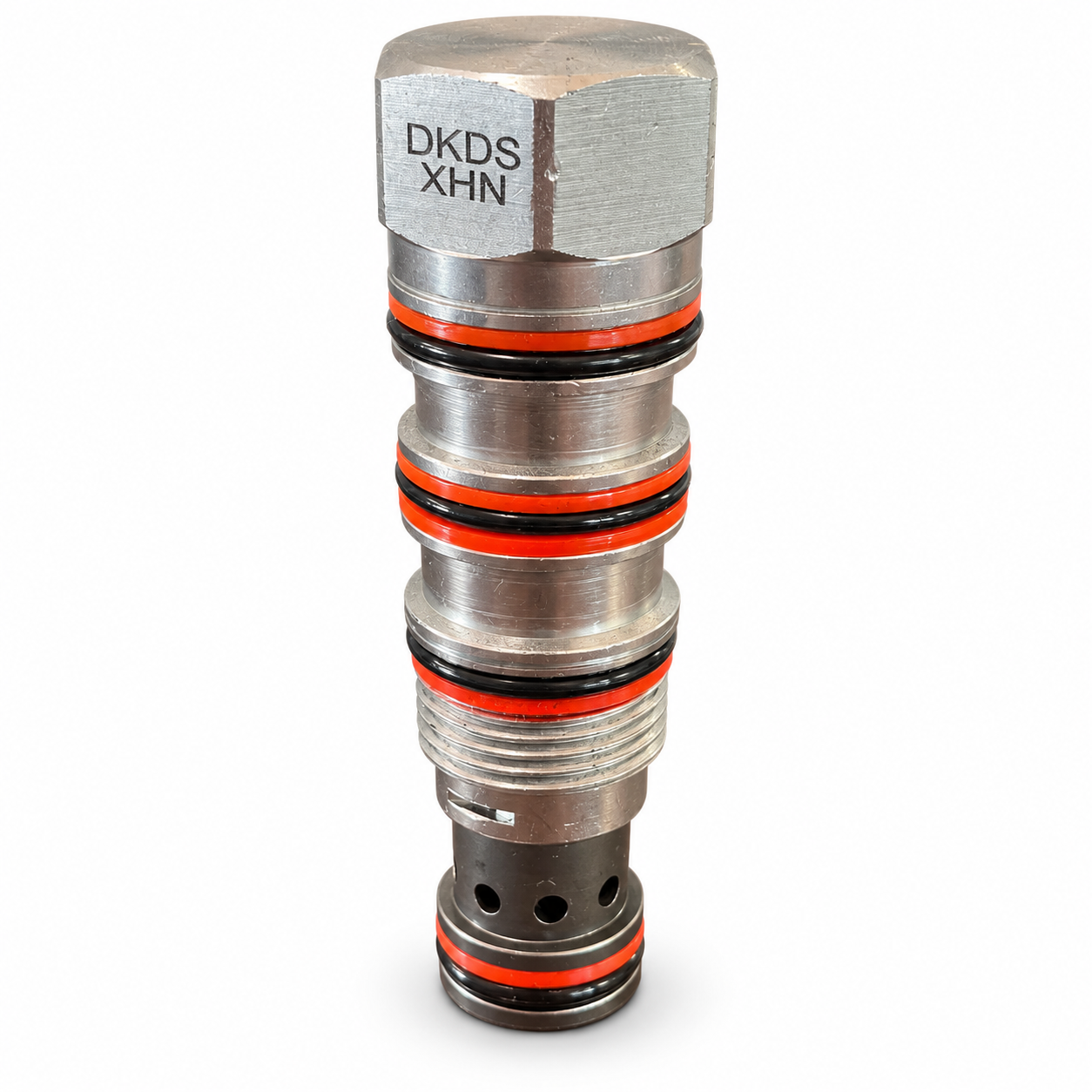

The DKDS-XHN hydraulic cartridge logic valve controls flow within compatible hydraulic manifold circuits. Its normally closed, balanced poppet design opens when pilot pressure is applied to port 3.
With a rated flow capacity of 60 L/min and a maximum operating pressure of 350 bar, this cartridge fits a T-21A cavity. The XHN configuration features standard pilot control, a minimum pilot pressure of 28 bar (400 psi) and Buna-N seals.
| Specification | Details |
|---|---|
| Model | DKDS-XHN |
| Valve type | Hydraulic cartridge logic valve |
| Design | Balanced poppet |
| Operation | Normally closed, pilot-to-open |
| Cavity | T-21A |
| Rated flow capacity | 60 L/min |
| Maximum operating pressure | 350 bar |
| Minimum pilot pressure | 28 bar / 400 psi |
| Control | Standard pilot |
| Seal material | Buna-N |
Before ordering, confirm your existing cartridge model, manifold cavity and hydraulic circuit requirements. Drain-port backpressure increases the pilot pressure needed to operate the valve.
Contact OneSP with your part number and application details for product enquiries.
One Stop Procurement is based in Benoni, South Africa. Contact our team about DKDS-XHN with your part number and manifold details, or browse our valve range.
1 in stock
